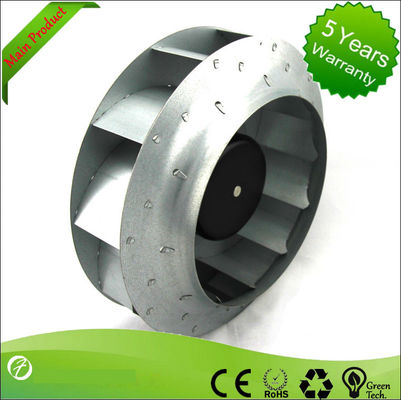

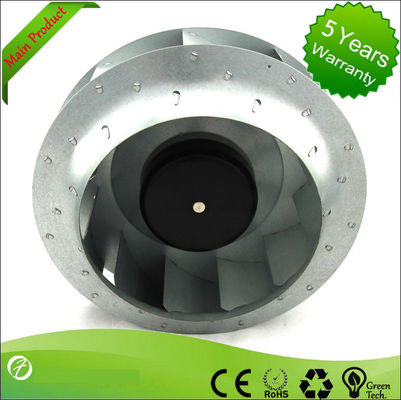

48V 280mm Centrifugal Blower Fan / Brushless DC Fan For Reduce CO2 Emissions
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Dc Centrifugal Blower | Rated Voltage | 48V |
---|---|---|---|
Rated Current | 2.2A | Rated Speed | 2200RPM |
Power Iput | 106W | Air Flow | 1560m³/h |
High Light | brushless dc fan,dc ventilation fan |
The Wind Is Strong Centrifugal Blower Fans With Ld280n-48d3-00 For Durable
Specifications:
Model Number:LD280N-48D3-00
Rated Voltage:48V
Rated Speed:2200RPM
Power:106w
Rated Current:2.2A
Air Flow:1560m³/h
Material:PA66
Type of protection: IP44
Approvals: CCC CE
Insulation class:B
Ball bearing:NSK
1. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation,
2. Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system,
3. Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation
