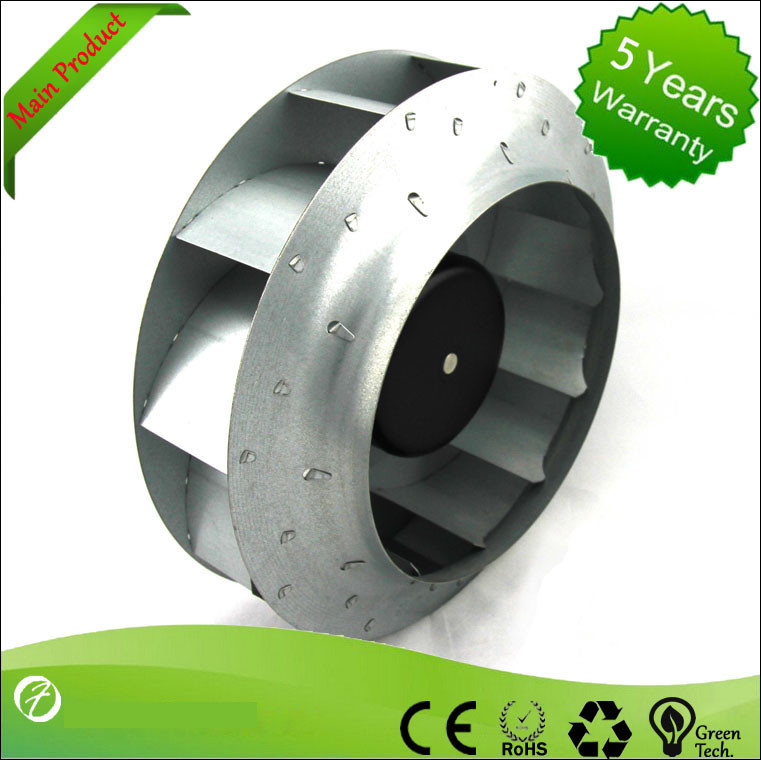

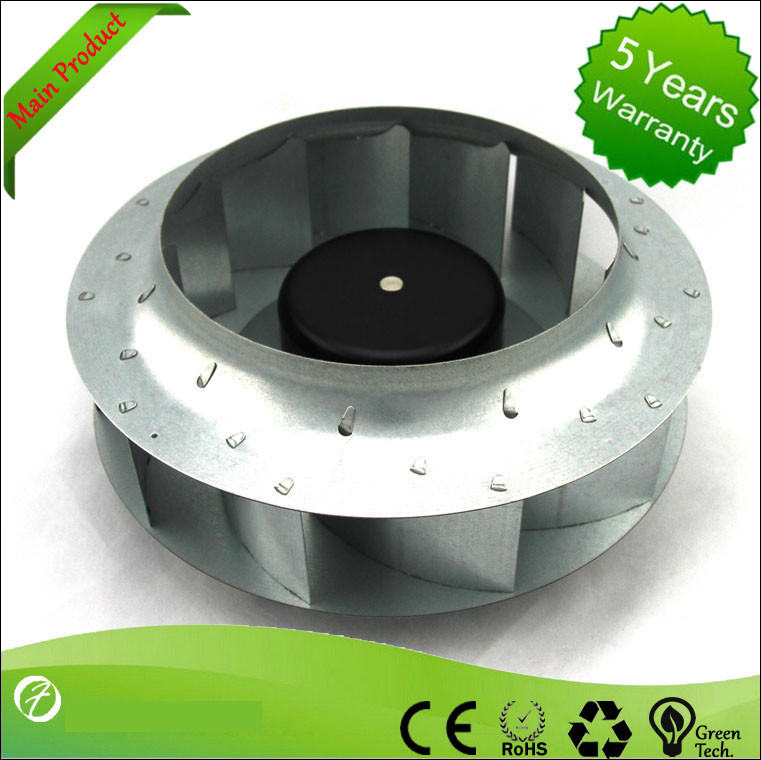

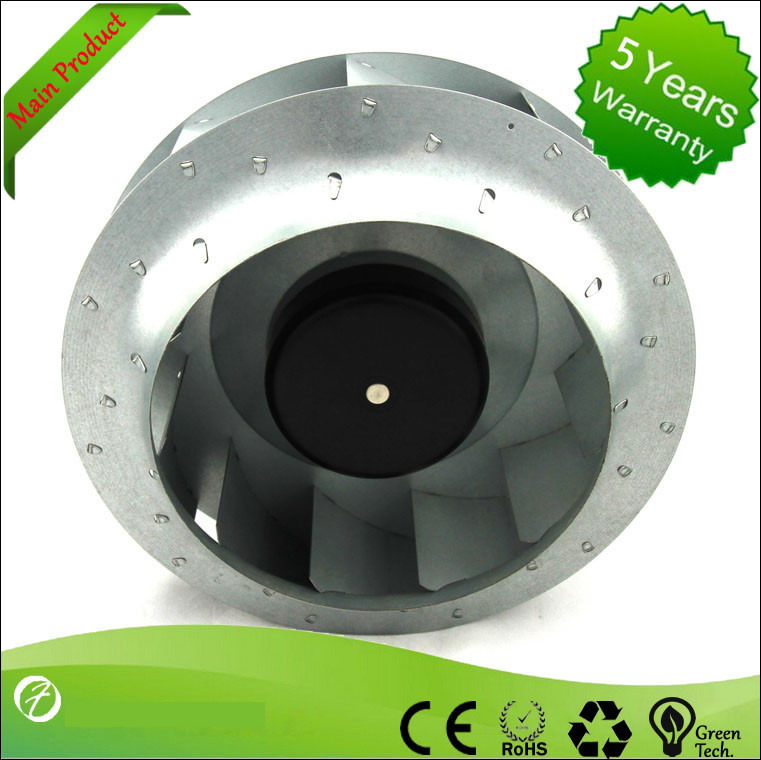

Aluminum Die Cast Ec Centrifugal Exhaust Fan Blower Backward Curved 280*50 mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Voltage | 220VAC | Speed | 2160rpm |
|---|---|---|---|
| Power Input | 170W | Current Draw | 1.2A |
| Air Flow | 1900m³/h | Sound Pressure Level | 69db |
| Highlight | backward centrifugal fan,backward curved blower |
||
Product Description
280*50 Mm Aluminum Die-Cast Ec Fans For Ld280c-230d3-00
Key Specifications/Special Features:
| Type | LD280C-230D3-01 |
| Nominal voltage | 230VAC |
| Speed | 2160RPM |
| Power input | 170W |
| Current draw | 1.2A |
| Air Flow | 1900³/h |
| Sound pressure level | 69dB |
A. Motor speed is not affected by power frequency
B. Speed range is big
C. the motor is stepless speed
D. starting moment is big
E. motor high efficiency range is big
F. the volume is very compact.
G. motor efficiency is high(>80%)
H, Motor efficiency loss is le
EC fans with integrated commutation electronics offer a high efficiency across the entire speed range, optimum noise characteristics with minimum installation complexity, and overall unmatched cost-effectiveness
Features:
- Size: 280mm diameter X 80mm
- Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
- Fully integrated electronic commutation.
- Protect against reverse polarity and locking.
- Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.
