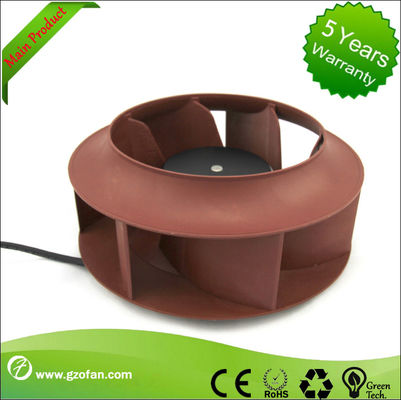

48V Ventilation DC Input Centrifugal Air Blower For Equipment Cooling

48V Ventilation DC Input Centrifugal Air Blower For Equipment Cooling

  • 48V Ventilation DC Input Centrifugal Air Blower For Equipment Cooling
  • 48V Ventilation DC Input Centrifugal Air Blower For Equipment Cooling
48V Ventilation DC Input Centrifugal Air Blower For Equipment Cooling
Product Details:
Place of Origin: China
Brand Name: OFAN
Certification: CE ROHS
Model Number: LD175N-48D3-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
Name: Centrifugal Fan Impeller Rated Voltage: 48v
Rated Current: 1.2A Rated Speed: 3300RPM
Power Iput: 57.6W Air Flow: 560m³/h
High Light:

brushless dc fan

,

dc centrifugal blower

Eqjipment Cooling Air Blower With Ventilation Fan For Ld175n-48d3-01





1. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and              easy to abstract heat., thus ensure to maximum the reliability of fan operation,

2.   Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation            currents; realizing the small loss an high efficiency characteristics

3.   The components, such ac inverters etc, whose capacity is low, and circuit are simpler, the cost lower          than ec blower’s





Specifications:

Model Number:LD175N-48D3-01

Rated Voltage:48V

Rated Speed:3300RPM

Power:57.6w

Rated Current:1.2A

Air Flow: 560m³/h



Material:PA66

Type of protection: IP44

Approvals: CCC CE

Insulation class:B

Ball bearing:NSK

48V Ventilation DC Input Centrifugal Air Blower For Equipment Cooling 0
