Integrated Design Small Centrifugal Blower / High Speed DC Blower Fan 115W

Integrated Design Small Centrifugal Blower / High Speed DC Blower Fan 115W

    • Integrated Design Small Centrifugal Blower / High Speed DC Blower Fan 115W
    • Integrated Design Small Centrifugal Blower / High Speed DC Blower Fan 115W
  • Integrated Design Small Centrifugal Blower / High Speed DC Blower Fan 115W

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE,UL,3C
    Model Number: LD225N-48D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $10~30/pcs
    Packaging Details: 65*65*70
    Delivery Time: 5-8 word days
    Payment Terms: L/C, T/T
    Supply Ability: 10000pcs20days
    Contact Now
    Detailed Product Description
    Rated Voltage: 48V Rated Speed: 2700RPM
    Air Flow: 1100m³/h Power: 115W
    Current: 2.4A Operation Voltage: 36-56V

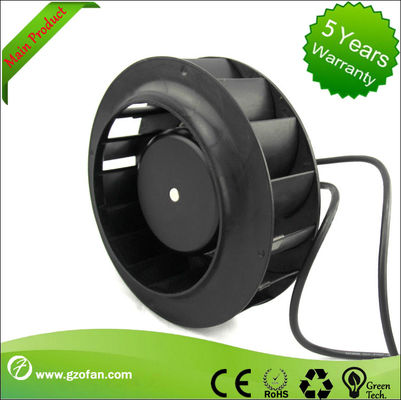

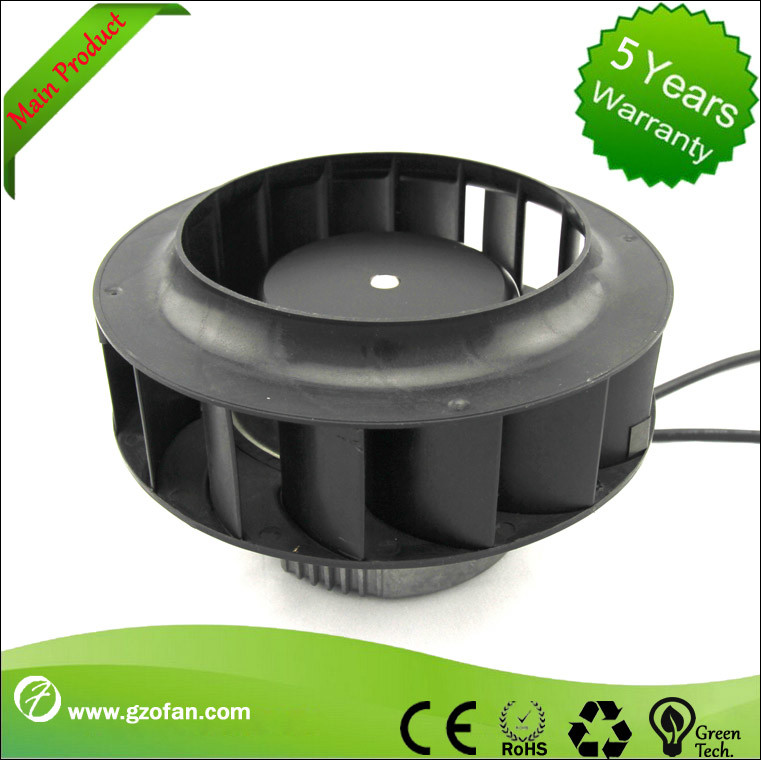

    PA66 Resemble Ebm-past 225mm DC Centrifugal Fan With Air Purification



    Listed
    Model
    Rated
    Voltage
    Operation
    Voltage
    Rated
    Current
    Power Rated
    Speed
    Air
    Flow
    Air
    Flow
    Air
    pressure
    Noise
    Level
    Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
    LD225N-48D3-00 48 36~56 1.85 88 2500 1000 592 41.5 65
    LD225N-48D3-01 48 36~56 2.4 115 2700 1100 650 36.8 65
    LD225N-24D3-00 24 16~32 4 96 2500 1000 592 41.5 65





















    1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and application of the overall power system in customer.

    2.  Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



    Benefits


    Energy savings : Minimum power consumption & better efficiency than AC equivalent.
    Control : 100% speed controllable, not frequency dependant. Can be set-up for constant airflow or constant pressure applications, 0-10VDC or PWM control signal.
    Low motor temperature : for longer lifetime than AC equivalent
    Simplicity : Electronic & power transformation are completely integrated within the motor.
    High performance : Speed can be driven up to 3600rpm, one EC fan replace multiple type of motors (2, 4 and 6 pole)
    Easy connection : No complicated wiring and set-up with a Frequency Controller, EC fans have very little configuration.




    1. Are you a factory or trading company?

    We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM

    2. How do I know which model I should choose

    Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.

    3. Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.





    Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

    Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

    The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma

    The basic parameters of field programmable: Maximum speed, minimum speed, maximum power, maximum current, resonance avoid
