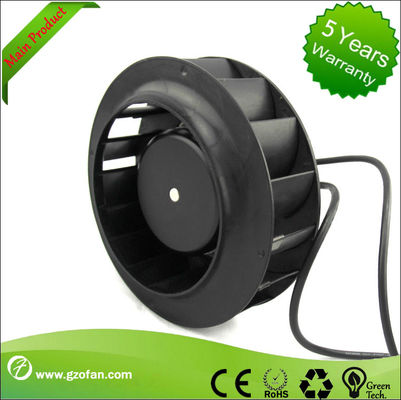

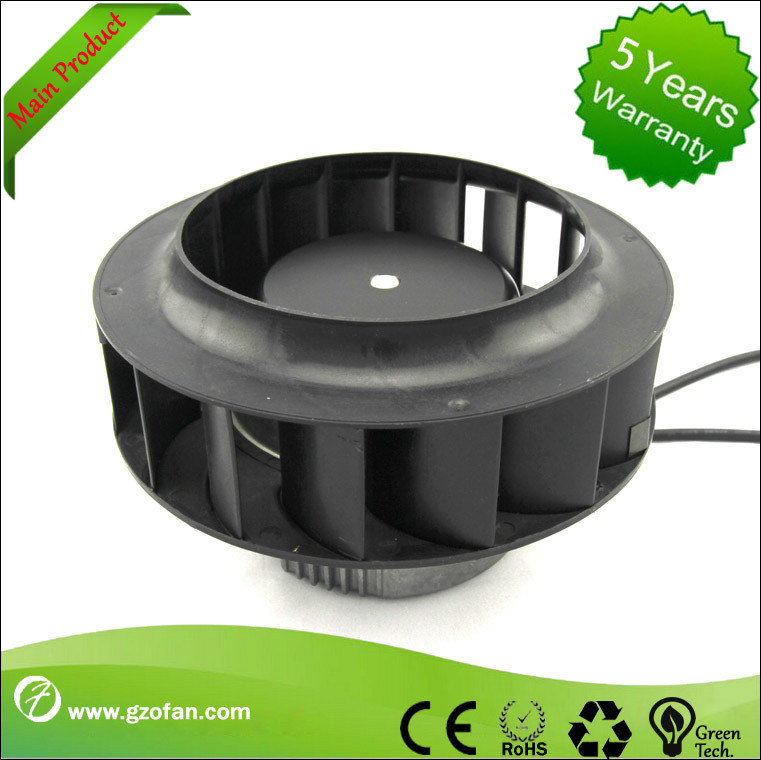

PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm

PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm

    • PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm
    • PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm
    • PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm
  • PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD190N-24D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: 45*45*24
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD190N-24D3-01 Rated Voltage: 24V
    Rated Current: 2.4A Rated Speed: 3000RPM
    Power Iput: 80W Air Flow: 580m³/h

    PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm



    Specifications:

    Model Number:LD190N-24D3-01

    Rated Voltage:310V

    Rated Speed:3300RPM

    Power:60w

    Rated Current:0.19A

    Air Flow:560m³/h

    Material:PA66

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK



    Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation  currents; realizing the small loss an high efficiency characteristics



    The components, such ac inverters etc, whose capacity is low, and circuit are simpler, the cost lower  than ec blower’s



    Variable speed control of dC fan can be realized / achievedvia 0-10V speed adjustment and/or external  circuit impulse modulation



    EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation  circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the   AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and  application of the overall power system in customer









    PA66 Dc Centrifugal Fan Blower , Backward Inclined Fan Energy Saving 190mm
