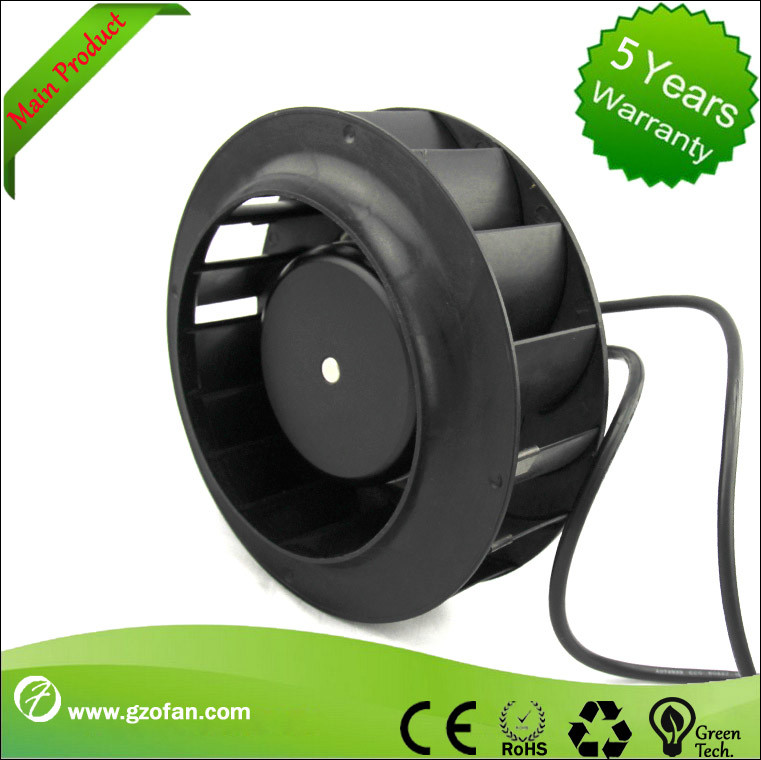

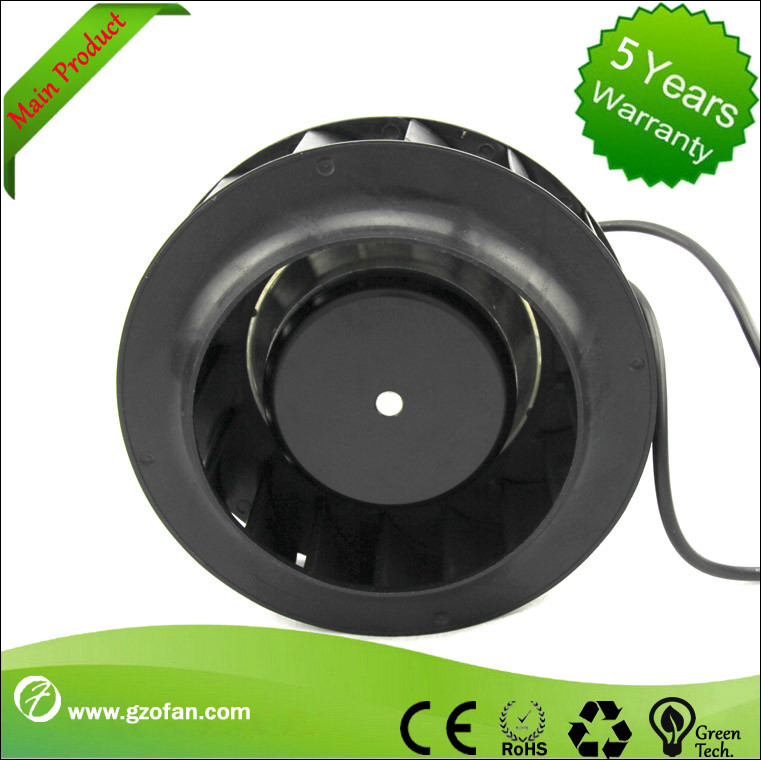

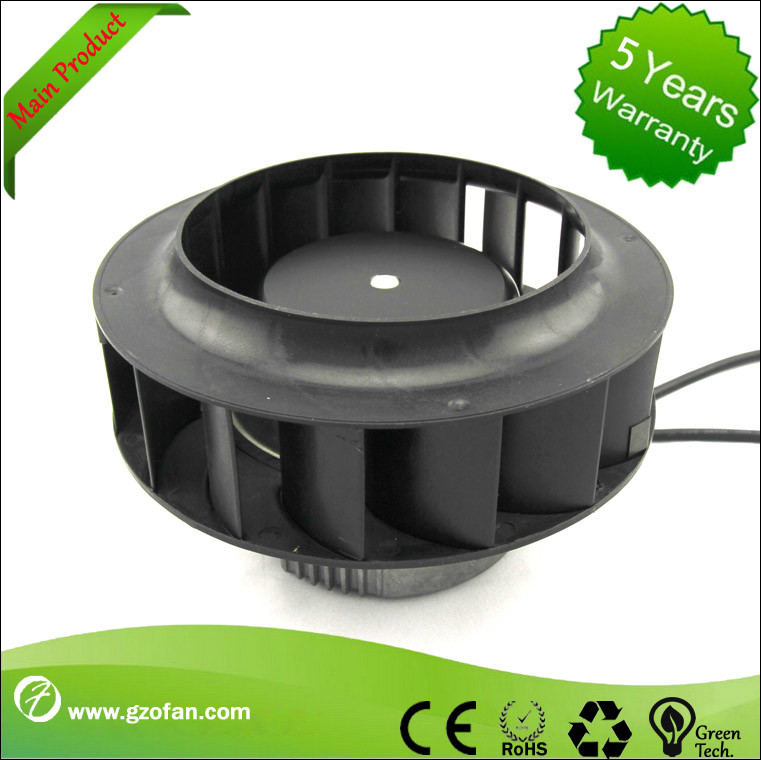

High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM

High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM

    • High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM
    • High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM
    • High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM
  • High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD225N-24D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: 45*45*24
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD225N-24D3-00 Rated Voltage: 24V
    Rated Current: 4A Rated Speed: 2500RPM
    Power Iput: 96W Air Flow: 1000m³/h

    High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM





    A. Motor speed is not affected by power frequency
    B. Speed range is big
    C. the motor is stepless speed
    D. starting moment is big
    E. motor high efficiency range is big
    F. the volume is very compact.
    G. motor efficiency is high(>80%)







    Specifications:

    Model Number:LD225N-24D3-00

    Rated Voltage:24V

    Rated Speed:2500RPM

    Power:96w

    Rated Current:4A

    Air Flow:1000m³/h

    Material:PA66

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK



    Constant torque ,constant speed and constant airflow of EC fan can be fulfilled via 180,sine SVPWM(Space Vector PWM)to meet customer needs



    Intelligent EC fan can support users to realize centralized operation control by 485 bus and monitor as many as 255 fans



    EC fan has comprehensive protection function, such as phase failure, overvoltage, undervoltage, locked-rotor, over current and temperature protection



    The applicable ambient temperature of the fan motors used in condenser is from -30~60



    The average service life of motors is over 30000 hours



    Our products have got CCC certificate and CE certificate



    High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM
