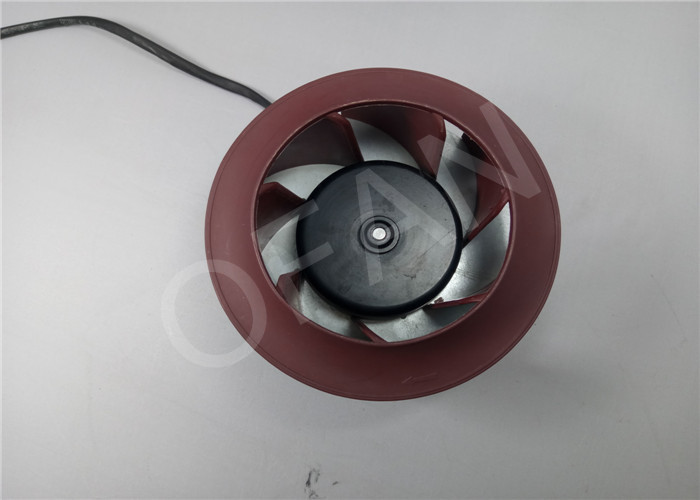

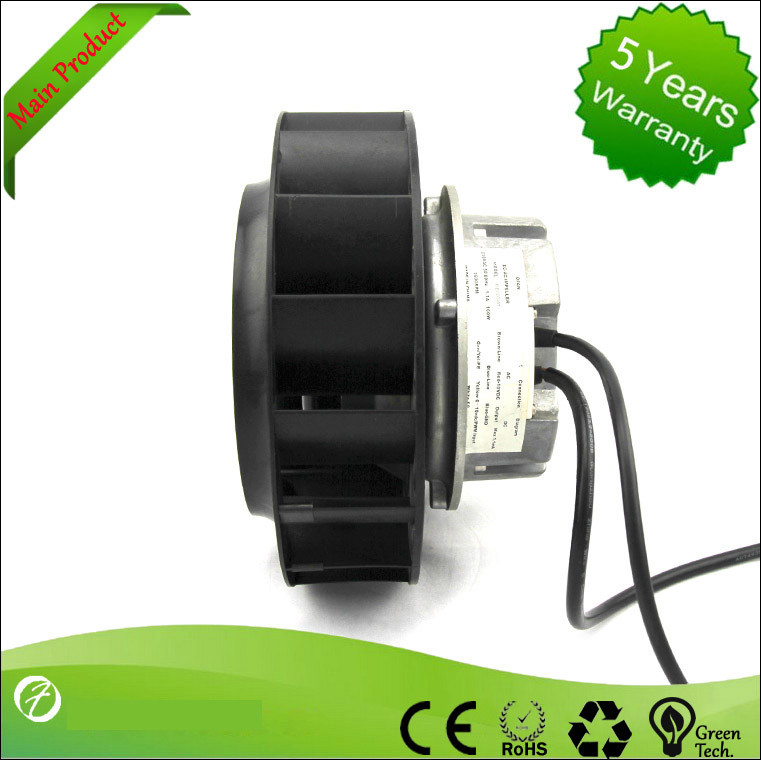

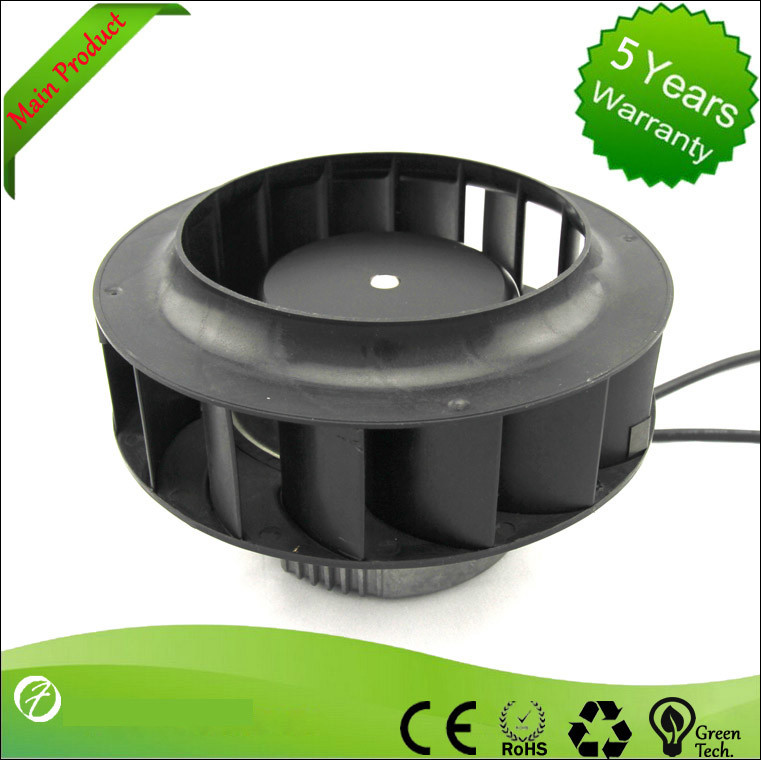

Dust Proof Warehouse Backward Curved Centrifugal Fan 225mm Air Flow 1200m³/h

Place of Origin China
Brand Name OFAN
Certification CE
Model Number LD225C-230D3-00
Minimum Order Quantity 1PCS
Price negotiation
Packaging Details 600*600*50
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10000pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Nominal Voltage 220VAC Speed 2500pm
Power Input 80W Current Draw 0.6A
Air Flow 1200m³/h Sound Pressure Level 69db
High Light

industrial centrifugal blower


centrifugal fans and blowers

Leave a Message
Product Description

Dust Proof Workshop Clean Room Backward Curved Centrifugal Fan With 225mm


Key Specifications/Special Features:

Type LD225C-230D3-00
Nominal voltage 230VAC
Speed 2500RPM
Power input 80W
Current draw 0.6A
Air Flow 1200m³/h
Sound pressure level 69dB
  • Benefits over traditional fan and motor technology:
  • Reduced energy consumption
  • Significant noise reduction
  • Stepless and infinite variable speed control
  • No need for additional motor protection
  • Remote monitoring via MODBUS
  • Compact motors making them fully interchangeable with AC products for retrofit
  • Fully integrated, mains input power supplies
  • Fully sealed electronics
  • Size: 225mm diameter X 89mm
  • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
  • Fully integrated electronic commutation.
  • Protect against reverse polarity and locking.
  • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.
