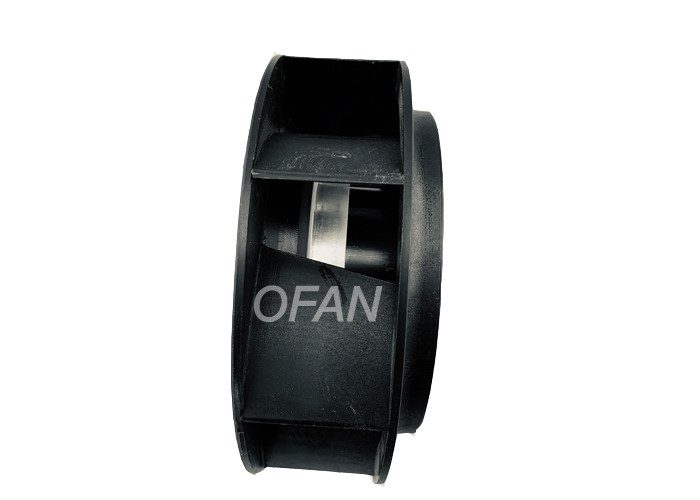

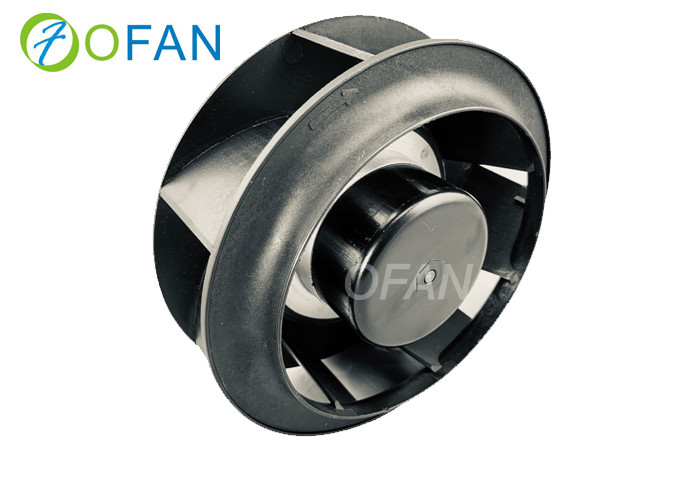

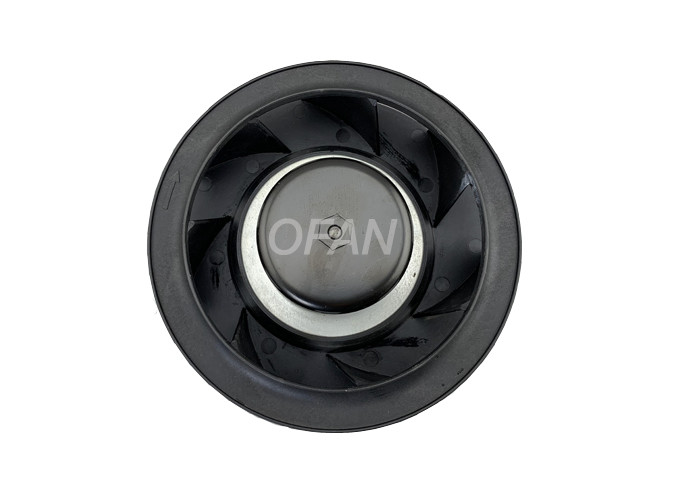

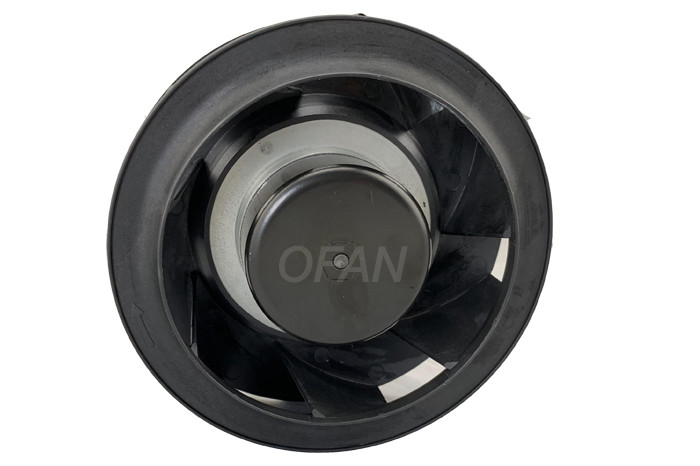

EBM Dc Brushless Blower Fan 12v Equipment Cooling 175mm

Place of Origin China
Brand Name OFAN
Certification CE ROHS CCC
Model Number LD175N-48D3-02
Minimum Order Quantity 1PCS
Price negotiation
Packaging Details 45*45*10
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000PCS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LD175N-48D3-02 Rated Voltage 48VDC
Rated Current 0.55A Power 26.4W
Rated Speed 2500RPM Air Flow 365m³/h
Highlight

175mm Brushless Blower Fan

,

EBM Brushless Blower Fan

,

2500RPM DC Centrifugal Fan

Leave a Message
Product Description

EBM Dc Brushless Blower Fan 12v With Equipment Cooling 175mm



The gas transported by the fan should be non-corrosive, non-flammable, non-explosive and non-sticky.



Operating conditions: the ambient temperature range should be:-40℃---+60℃, the relative humidity should be less than 90%, the altitude should be less than 1000 meters.



Put simply, DC motors are around 30% more efficient than AC motors because the secondary magnetic field comes from permanent magnets rather than copper windings.



An AC motor consumes additional energy solely to create a magnetic field by inducing a current in the rotor. But this is only half the story. The use of modern electronics in controlling the motor has opened up many other possibilities which contribute to using less power



If two motors are producing the same output but one has a greater power input then you can be sure that the surplus energy is being dissipated as heat. If an application is designed to remove heat then it will have to do extra work just to remove the heat produced by the fan motor itself, so EC fans will improve the efficiency of the whole system.



Type Rated Voltage Rated Current Power Rated Speed Air Flow

Sound pressure

(dB)

Prem.amb.temp
LD175N-48D3-02 48VDC 0.55A 26.4W 2500RPM 365m³/h 46db

-20~+60







Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.



A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant.



Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM



How do I know which model I should choose

Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
