| Place of Origin: | China |
| Brand Name: | OFAN |
| Certification: | CE ROHS |
| Model Number: | LD280C-230D3-01 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 45*45*24 |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000PCS |
| Power: | 170W | Rated Speed: | 2150RPM |
|---|---|---|---|
| Air Flow: | 1900m³/h | Nominal Voltage: | 230V |
| Type: | LD280C-230D3-01 | Current Draw: | 1.2A |
| High Light: | 2150RPM EC Centrifugal Fans,280MM EC Centrifugal Fans,170W Exhaust Blower Fan |
||

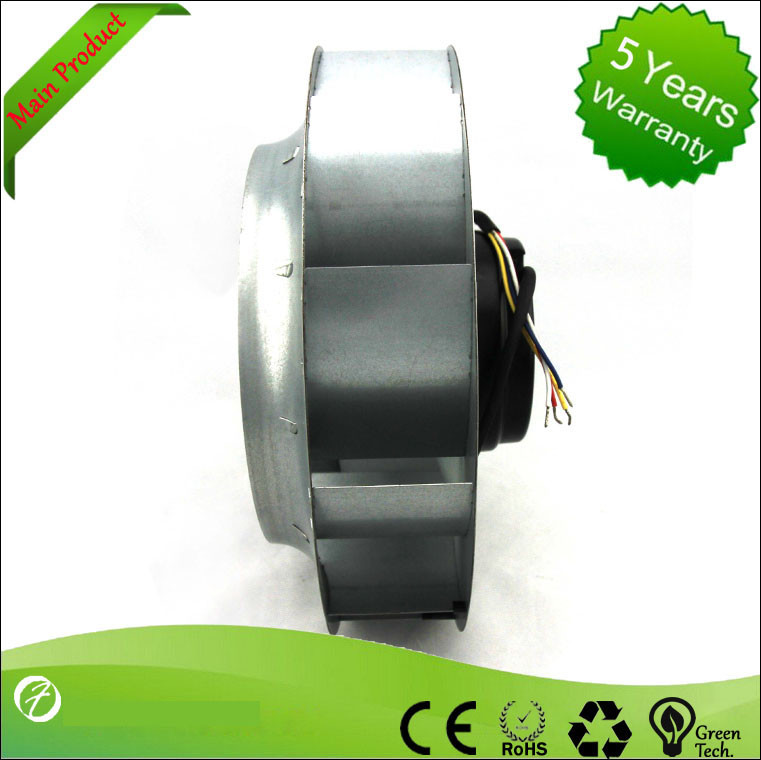

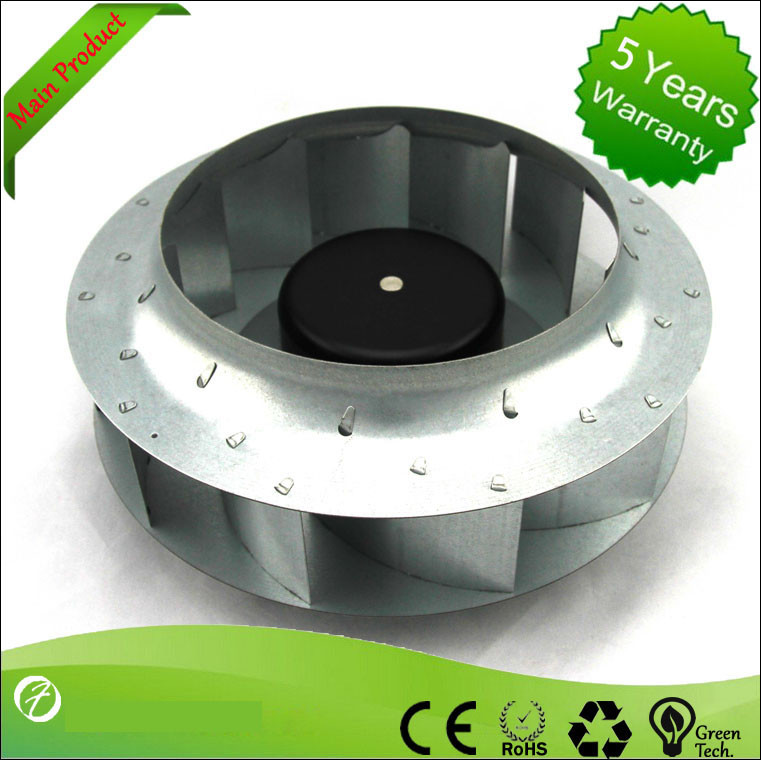

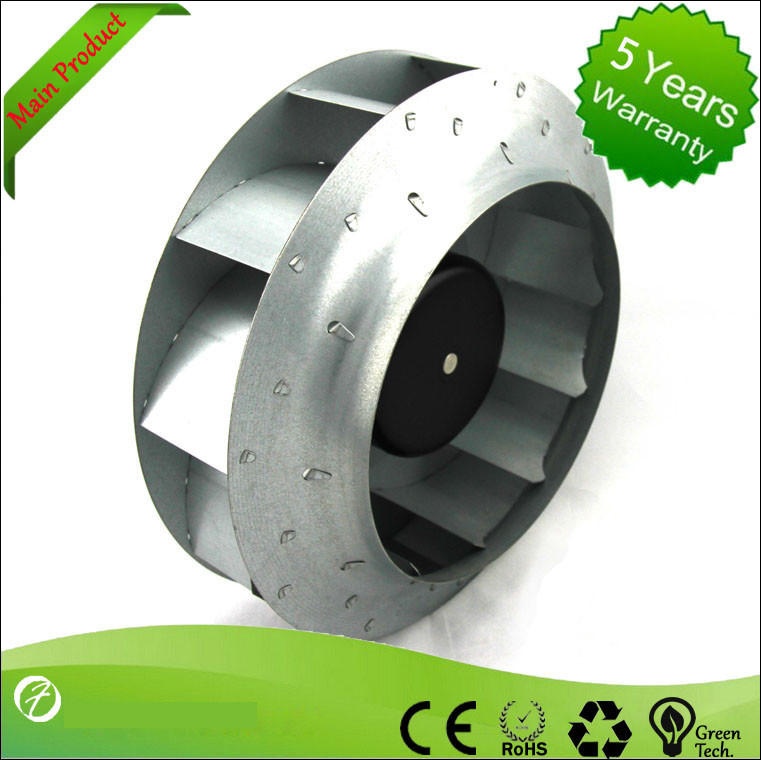

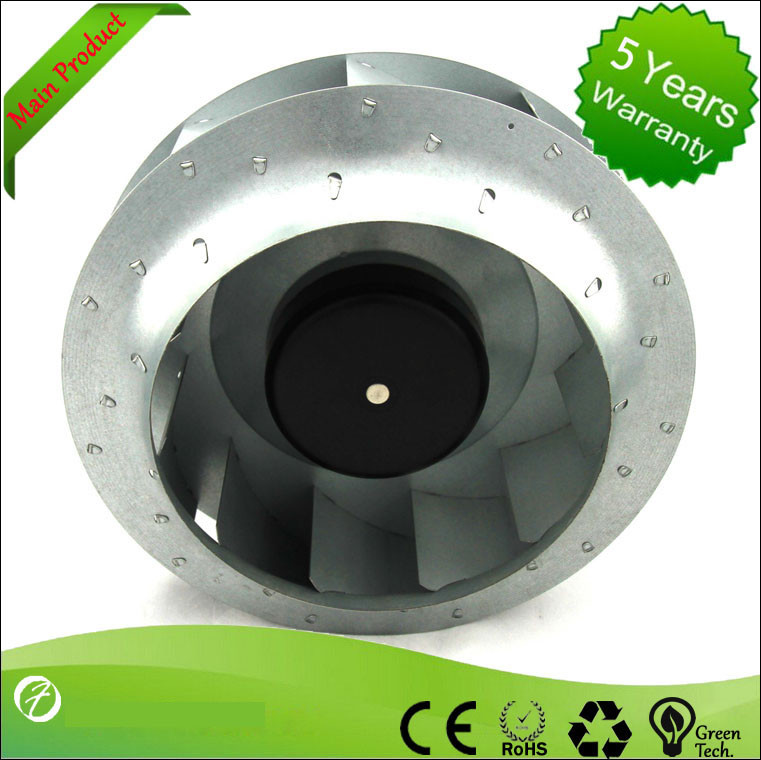

Speed 2150RPM EC Centrifugal Fans For Exhaust Blower Fan 280MM
| Type |
Nomual voltage (VAC) |
Frequency (HZ) |
Speed (rpm) |
Power imput (w) |
Curreng draw (A) |
Sound pressurelevel (dB) |
Perm.amb.temp |
| LD280C-230D3-01 | 230 | 50/60 | 2150 | 170 | 1.2 | 60 |
-20~+60
|
Power factor correction(PFC): Passive and active(IEC61000-3-2)
Soft start, adjustable acceleration, CVT
Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)
Protection: over voltage, over temperature, over current, phase loss detection, communication failures.
The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma
The basic parameters of field programmable: Maximum speed, minimum speed, maximum power,
Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans.
Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to
maintain the work area, the fans are run at roughly half the airflow.
aster/Slave : This system is used when several fans are used together within a single application. The main fan (Master) is individually pressure
controlled. The other fans (slaves) are then speed controlled by the Master fan : Slave Fans are always at the speed of the master fan (Rosenberg Versions only).
Safe-common necessity of company and customers
Excellent –worker and product
Efficiency-worker and produc
EC technology advantages:
1.Professional EC R&D engineer team;
2.OFAN PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
a. OFAN is a real manufacturer within 10000 sqm workshop for fans R&D, production.
b.The best engineer team in China, chief engineer was trained in Japan.
c.The best electric components imported from world top three suppliers.
d.OEM production available.
T/T, L/C, other kind of payment please contact with us
1 piece sample fan. We believe our fan quality must satisfy customer.
