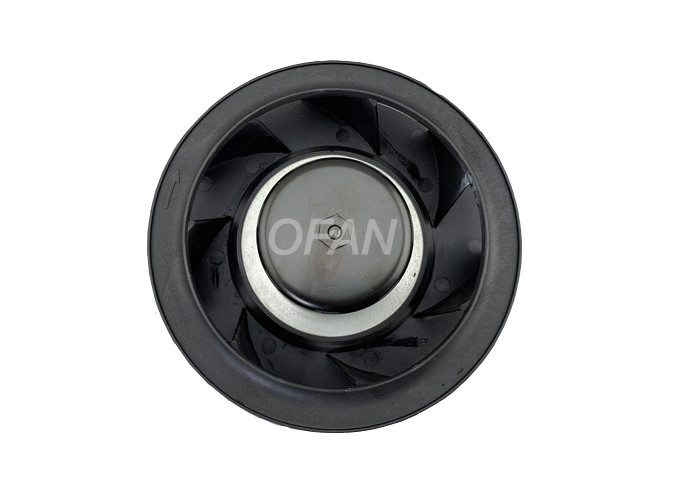

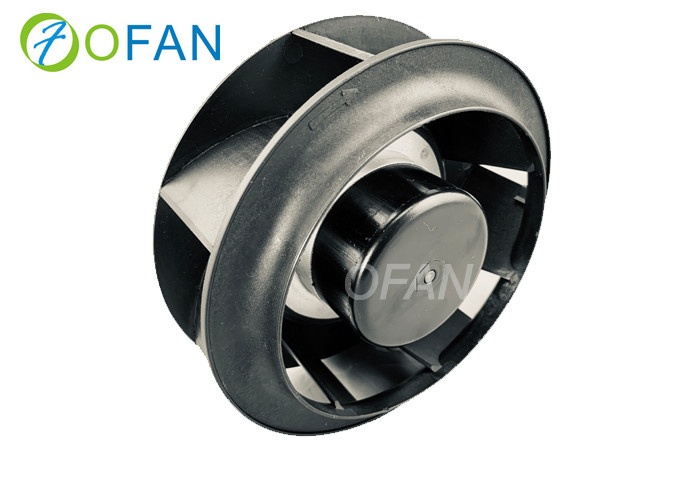

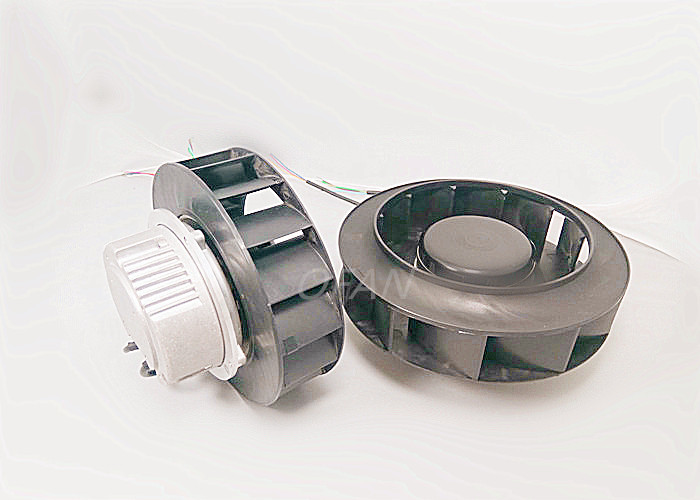

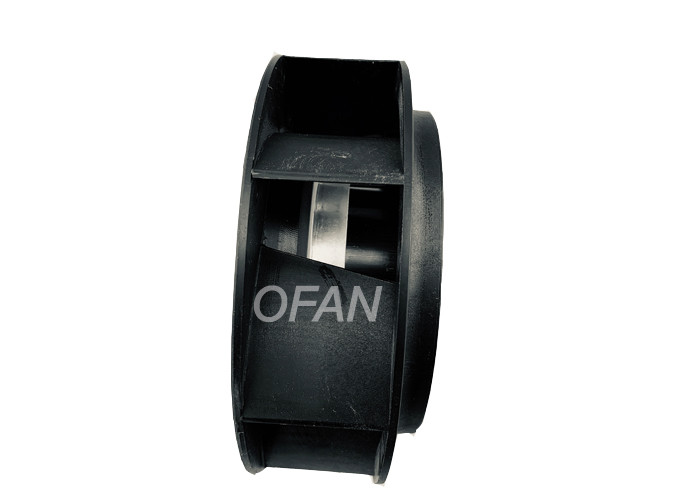

Parallel Ebm DC Centrifugal Fan Compact Black 48V Dc Blower Fan

Place of Origin China
Brand Name OFAN
Certification CE,UL,3C
Model Number LD175N-48D3-01
Minimum Order Quantity 1
Price $10~30/pcs
Packaging Details 65*65*70
Delivery Time 5-8 word days
Payment Terms L/C, T/T
Supply Ability 10000pcs20days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Voltage 48V Rated Speed 3100RPM
Air Flow 560m³/h Power 57.6W
Current 1.3A Operation Voltage 36-56V
High Light

Parallel Ebm DC Centrifugal Fan


1.3A DC Centrifugal Fan


Black 48V Dc Blower Fan

Leave a Message
Product Description

Parallel Ebm 12v Centrifugal Fan , Compact Black 12v Dc Blower Fan


Power Rated
Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
LD175N-48D3-01 48 36~56 1.2 57.6 3100 560 330 41.5 70
LD175N-24D3-01 24 16~28 2.5 60 3100 560 330 36.8 65









The facts about OFAN centrifugal fans at a glance

§ AC and EC centrifugal fans with forward-curved blades

§ "RadiCal" AC and EC low-pressure centrifugal fans

§ "RadiPac" EC medium-pressure centrifugal fans

§ Compact design with external rotor motor technology

§ Complete series for every application

§ 100% speed-controlled analogue or serial interface

§ GreenTech EC technology for high efficiency

§ Quiet operation due to optimised flow control and ingenious commutation of the EC motor

§ Perfectly matched components for easy installation: controller, motor, fan

§ Extensive range of accessories




Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only improved the technology of motor but also greatly enhance mechanical reliability of motor operation and increase the service life

Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics


External rotor axial fans series product:

1. Compact configuration, convenient installation and credible running

2. Pressure high, airflow stable

3. Little noise, energy saving and highly active

4. Several speed rang, adapt to both frequency conversion and voltage transformation, speed changing active

5. AC single phase 230+/-10% vor three phase 400+/-10%V are alternative for voltage and 50hz or 60hz for frequency

6. Extensive application: can be widely used in refrigeration and ventilation fields such as duct fans and roofing fans.

7. The safety grade of this series if IP54 and the insulation classes are available among B,F and H.

8. The products have got the CCC certificate in China and CE approval in Europe.


Energy savings with EC fans
Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.



Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.


 if the fans doesn't work well, what shall I do ?

If happens within one year, we will take in charge of the maintenance, or send you a new machine freely
