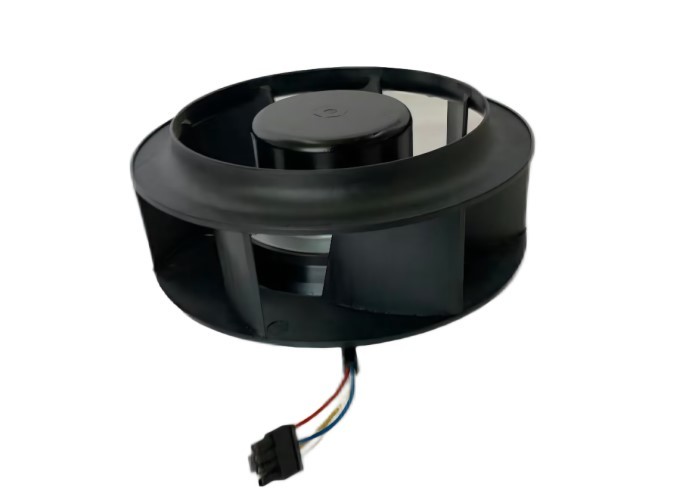

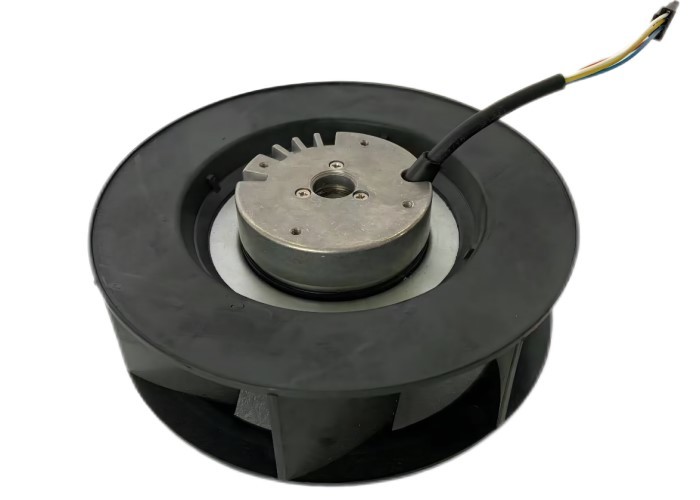

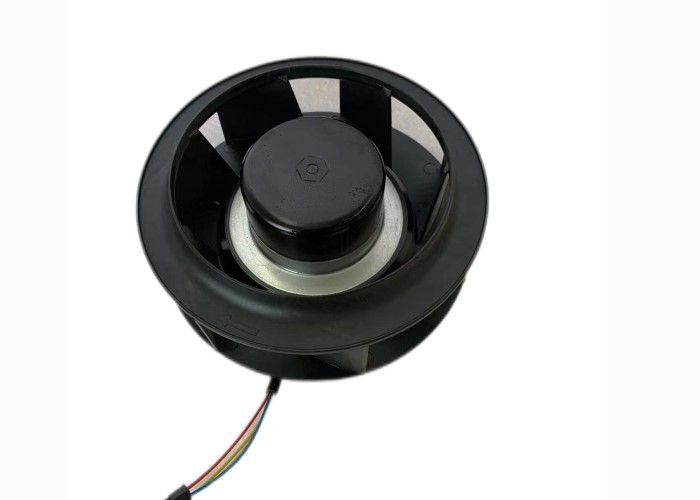

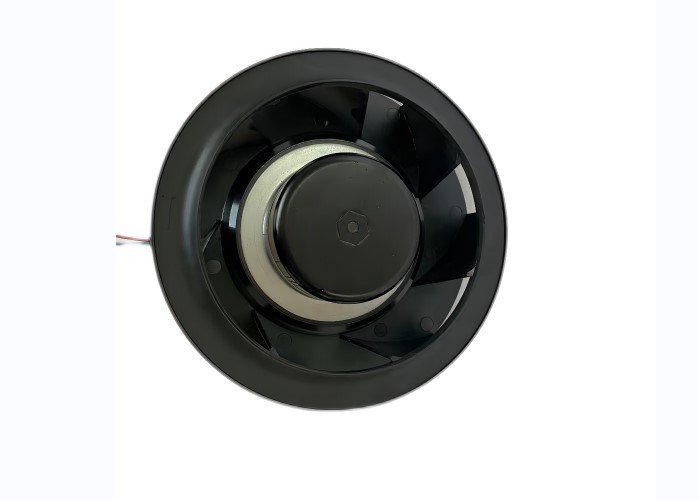

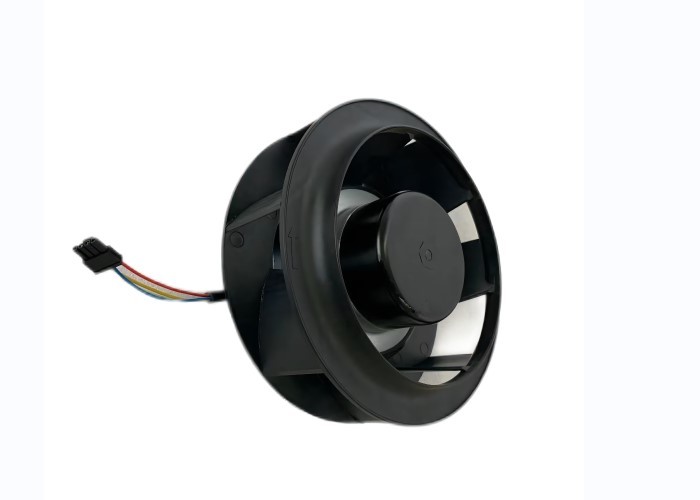

Centrifugal Impeller Radial Blower Fan High Cfm Backward Curved

Place of Origin China
Brand Name OFAN
Certification CE,UL,3C
Model Number LD175N-48D3-00
Minimum Order Quantity 1pcs
Price $10~30/pcs
Packaging Details 45*45*10
Delivery Time 5-8 work days
Payment Terms L/C, T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impeller Material Propylene With Glass-fiber Reinforced, Insulation Class B
Air Flow 764m³/h Feature High Performance
High Light

Centrifugal Impeller Radial Blower Fan

,

Backward Curved Radial Blower Fan

,

High Cfm Radial Blower Fan

Leave a Message
Product Description

764m3/H High Pressure Blower Fan Dc Small Centrifugal Fan 12v B Insulation Class



EC Fan Introduction

EC(Electronically Commutation) motors, as built-in DC inverter driver three phase AC external rotor permanent magnet synchronous motors, its efficiency and low noise is considered to be ultimate fan energy technologies.



Core Technology Of EC Fan Controller

1. Sensorless vector control software

2. High-performance power electronic circuits

3. Security and reliability design(Standards, Certification)

4. Embedded design



Listed
Model
Rated
Voltage
Operation
Voltage
Rated
Current
Power Rated
Speed
Air
Flow
Air
Flow
Air
pressure
Noise
Level
Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
LD175N-48D3-00 48 36~56 2.3 110 4200 692 408 48.4 81
LD175N-48D3-01 48 36~56 1.2 57.6 3300 560 330 38.1 64
LD175N-48D3-02 48 36~56 0.55 26.4 2500 365 215 18.1 60
LD175N-28D3-00 28 18~32 4 112 4400 726 428 50.7 81
LD175N-24D3-00 24 16~28 3 75 3800 626 369 43.7 70.
LD175N-48D3-01 24 16~28 2.5 60 3300 560 330 38.1 64



























Permanent-magnet brushless DC motor within the rotor


The stator is driven by electronic switches (which replace the Carbon brushes), controlled by a microcontroller.


Electronic system (hall effect sensor or software is used to recognize the rotor position)


AC operated (230Volts Single phase or 380/480Volts 3phase, 50/60Hz)



Why choose us?
We belongs to the factory, so price we can give is based on factory cost, not trading cost.
We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.



EC technology advantages:
2.OFAN PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.


Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.



How about delivery time?

a. Sample order below 10 pieces, we could make dispatch within 10 days.

b. Within four production lines we could supply 1000 fans each day.

What kind of payments do you support?

T/T, L/C, other kind of payment please contact with us


What's the MOQ?

piece sample fan. We believe our fan quality must satisfy customer.







if the fans doesn't work well, what shall I do ?

If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
If after one year, we will supply you the right parts to replace at low price.



What about delivery date?

Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days.
