PA66 EC Backward Centrifugal Blower With Fresh Air System 190 mm High Volume

Place of Origin China
Brand Name OFAN
Certification CE
Model Number LD190C-23D03-00
Minimum Order Quantity 1PCS
Price negotiation
Packaging Details 600*600*50
Supply Ability 10000pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Nominal Voltage 220VAC Speed 3570pm
Power Input 100W Current Draw 0.76A
Air Flow 760m³/h Sound Pressure Level 78db
Name Quiet Centrifugal Fan
High Light

centrifugal backward curved fan

,

backward curved blower

Leave a Message
Product Description

Pa66 Ec Backward Centrifugal Blower With Fresh Air System For Ld190c-230d3-00



Key Specifications/Special Features:

Type LD190C-230D3-00
Nominal voltage 230VAC
Speed 3570RPM
Power input 100W
Current draw 0.76A
Air Flow 760m³/h
Sound pressure level 78dB

  • Noise-optimized air outlet in scroll housing.
  • Pressure-optimized blower
  • shaded pole motor
  • Impedance protected.



Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



Features:
  • Size: 190mm diameter X 63mm
  • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
  • Fully integrated electronic commutation.
  • Protect against reverse polarity and locking.
  • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.

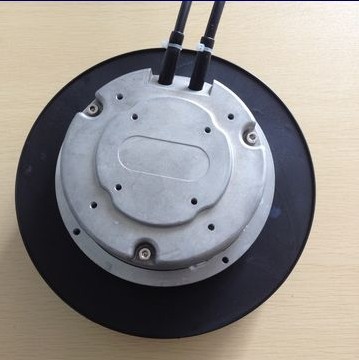

PA66 EC Backward Centrifugal Blower With Fresh Air System 190 mm High Volume 0
